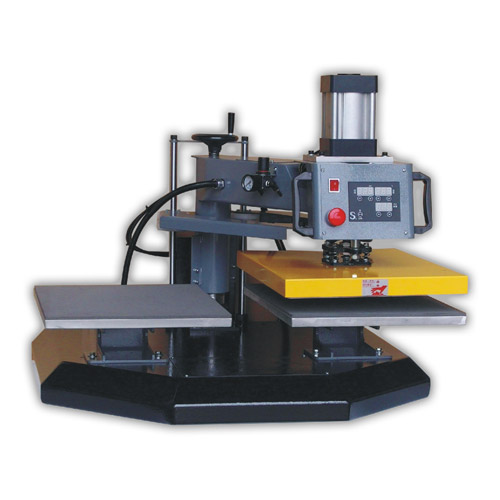

Pneumatic Heat Press Transfer Printing Machine

Serial:TY-CS38X38/TY-CS40X40/TY-CS40X50/TY-CSM38X38/TY-CSM40X40/TY-CSM40X50
  • Product Specification
  • Product Description
Model Elec. Power Platen(cm) Operation Max.Temperature Machine Dims. Packing Dims. N.W. G.W.
TY-CS40X50 220V
Single-phase		 2kw 40x50 Pneumatic 250 ℃ 972*895*794 1190*970*930 133kgs 169kgs
  • Name： Pneumatic Heat Press Transfer Printing Machine
  • Type： TY-CS38X38/TY-CS40X40/TY-CS40X50/TY-CSM38X38/TY-CSM40X40/TY-CSM40X50
  • Property： ．Heat platen swing-away automatic/semi-automatic moving.
    ．Dual bottom platen.
    ．Semi-automatic and automatic head traversing printing.
    ．Pressure of pneumatic 4-6kg/cm².
    ．TY-CSM Semi-automatic printing.
