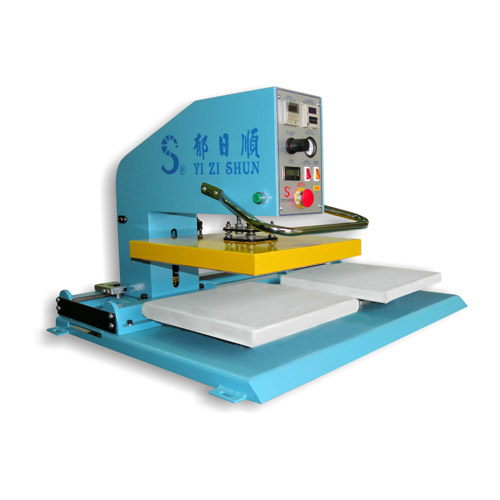

Pneumatic Heat Press Transfer Printing Machine

Serial:TY-YZF1515/TY-YZF1616/TY-YZF1620
  • Product Specification
  • Product Description
Model Elec. Power Platen(cm) Operation Max.Temperature Machine Dims. Packing Dims. N.W. G.W.
TY-YZF1515 220V
Single-phase
2kw (38x38) x 2 Pneumatic 250 ℃ 1100*1000*630 1290*1190*820 150kgs 130kgs
TY-YZF1616 220V
Single-phase
2kw (40.6X40.6)X2 Pneumatic 250 ℃ 1100*1000*630 1290*1190*820 150kgs 132kgs
TY-YZF1620 220V
Single-phase
2kw (40.7x50.8) x 2 Pneumatic 250 ℃ 1100*1000*630 1290*1190*820 150kgs 132kgs
  • Name: Pneumatic Heat Press Transfer Printing Machine
  • Type: TY-YZF1515/TY-YZF1616/TY-YZF1620
  • Property: .Dual bottom platen manual moves right and left.
    .Dual bottom platen.
    .Pressure of pneumatic 4-6kg/cm².
