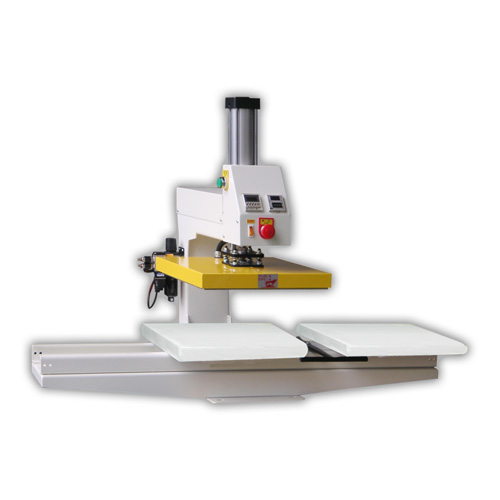

Pneumatic Seamless Heat Pressing Machine

  • Product Specification
  • Product Description
Model Elec. Power Platen(cm) Operation Max.Temperature Machine Dims. Packing Dims. N.W. G.W.
TY-TYS1515A-S 110V / 220V
2kw (38X38) X2 Pneumatic 220 ℃ 1200*660*860 1310*810*1020 79kgs 130kgs
TY-TYS1616A-S 110V / 220V
2kw (40.6X40.6)X2 Pneumatic 220 ℃ 1200*660*860 1310*810*1020 813kgs 132kgs
  • Name: Pneumatic Seamless Heat Pressing Machine
  • Type: TY-TYS1515A-S/TY-TYS1616A-S
  • Property: .Dual bottom platen manual moves right and left.
    .Pressure of pneumatic 4-6kg/cm².
