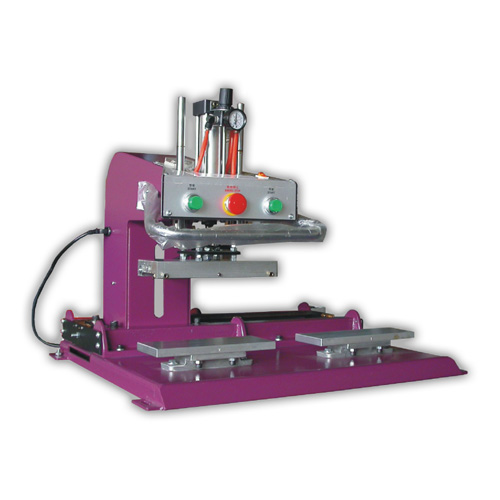

Pneumatic Zipper Welding Machine

Serial:TY-ZL410/TY-ZL410D/TY-ZL410E
  • Product Specification
  • Product Description
Model Elec. Power Platen(cm) Operation Max.Temperature Machine Dims. Packing Dims. N.W. G.W.
TY-ZL410 220V
Single-phase		 2kw 15x26 Pneumatic 220 ℃ 760*670*590 880*800*690 66kgs 89kgs
TY - ZL410D 220V
Single-phase		 2kw 15x26 Pneumatic 220 ℃ 760*670*590 960*820*950 86kgs 108kgs
TY - ZL410E 220V
Single-phase		 2kw 15x26 Pneumatic 220 ℃ 760*670*590 880*800*690 66kgs 89kgs
  • Name： Pneumatic Zipper Welding Machine
  • Type： TY-ZL410/TY-ZL410D /TY-ZL410E
  • Property： ．Top platen manual moves right and left.
    ．Top Heat platen only. Dual Flat bottom platens.
    ．Both top and bottom Heat platen.
        Dual bottom platens,interchangeable zipper model for zipper #3, #5.
    ．Bottom Heat platen.
        Dual bottom platens, interchangeable zipper model for zipper #3, #5.
    ．Pressure of pneumatic 4-6kg/cm².
